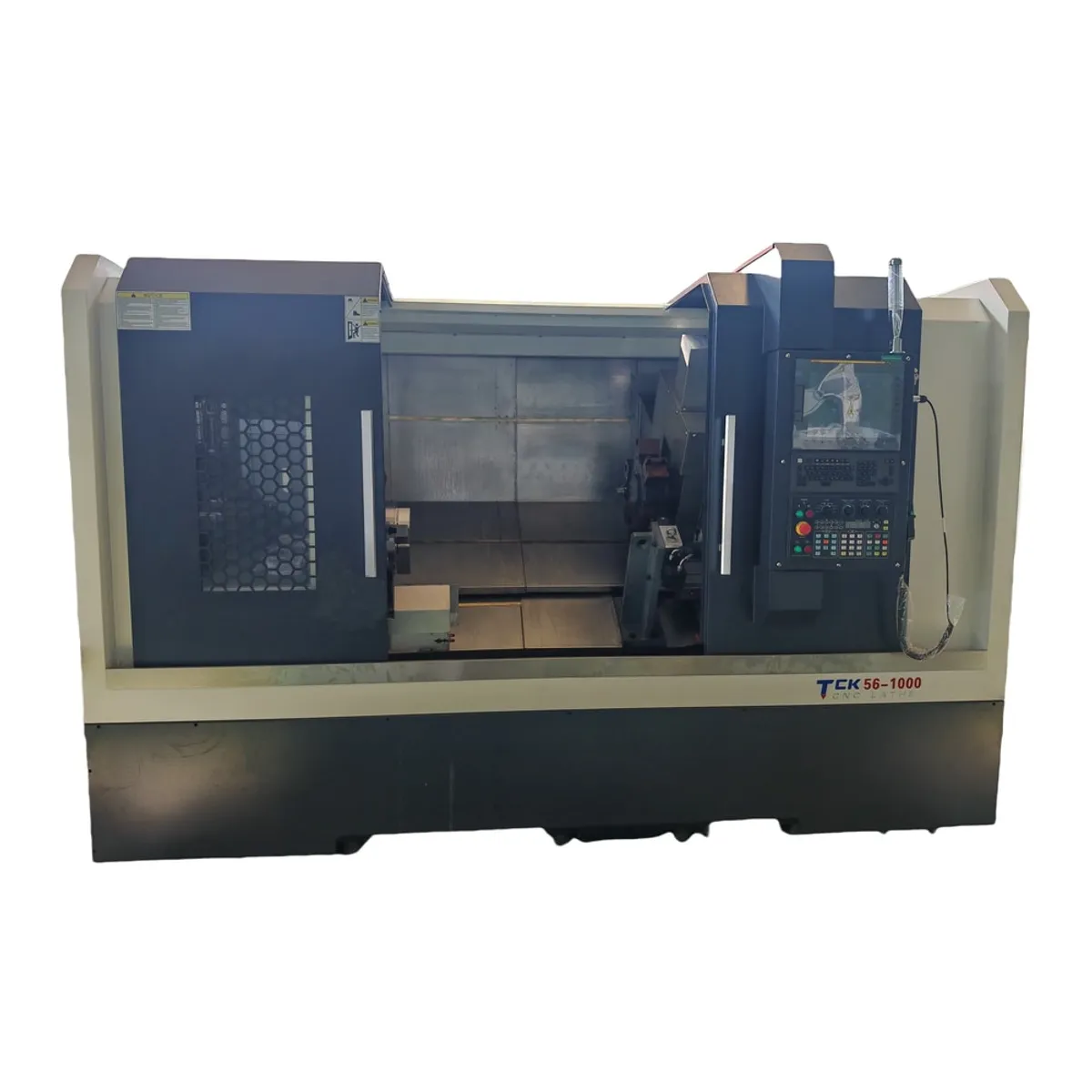

TCK56 Heavy-Duty Slant Bed CNC Lathe
Large-Bore Heavy-Duty Slant Bed Lathe for Flanges, Pipe Threading & Heavy Forgings
Parametric Technical Specifications
Standard ISO 230-2Key Engineering Advantages
- ✓ Extra-wide monolithic 45° slant bed casting weighing over 4,000 kg for extreme harmonic damping
- ✓ High-capacity spindle bore (up to 105 mm) allowing large tubular stock feeding
- ✓ Heavy-duty MT5 hydraulic tailstock with high clamping force supporting workpieces up to 1,200 kg
- ✓ Optionally equipped with heavy 2-speed automatic transmission gearbox for 750+ Nm cutting torque
- ✓ High-volume dual coolant pumps with flood wash-down and high-pressure tool coolant
Primary Industrial Applications
Engineering Overview
The Mainland CNC TCK56 is engineered for demanding metal removal tasks where standard lathes suffer from vibration and tool deflection. With its reinforced 45° Meehanite bed and high-torque A2-8/A2-11 spindle, the TCK56 routinely executes heavy depths of cut (up to 10 mm radial depth) in high-strength carbon steels and chrome-moly forgings.
Big-Bore Spindle & Thermal Regulation
Designed for oilfield threading and heavy shaft processing, the headstock incorporates an active air-oil cooling circuit that maintains spindle thermal stability throughout long multi-pass threading cycles.
